Aimed at connection to the Mi Home or Tuya ecosystem, and suitable for power management in homes and small commercial premises.
Remote control
Supports status monitoring, switching control, and device-function settings from a mobile device.
Energy-use statistics
Combines energy data with load status to help assess day-to-day power use.
Residual-current and abnormal-condition protection
Supports alerts and protection settings for residual current, overload, over- and under-voltage, overtemperature and other faults.
Section
Product details

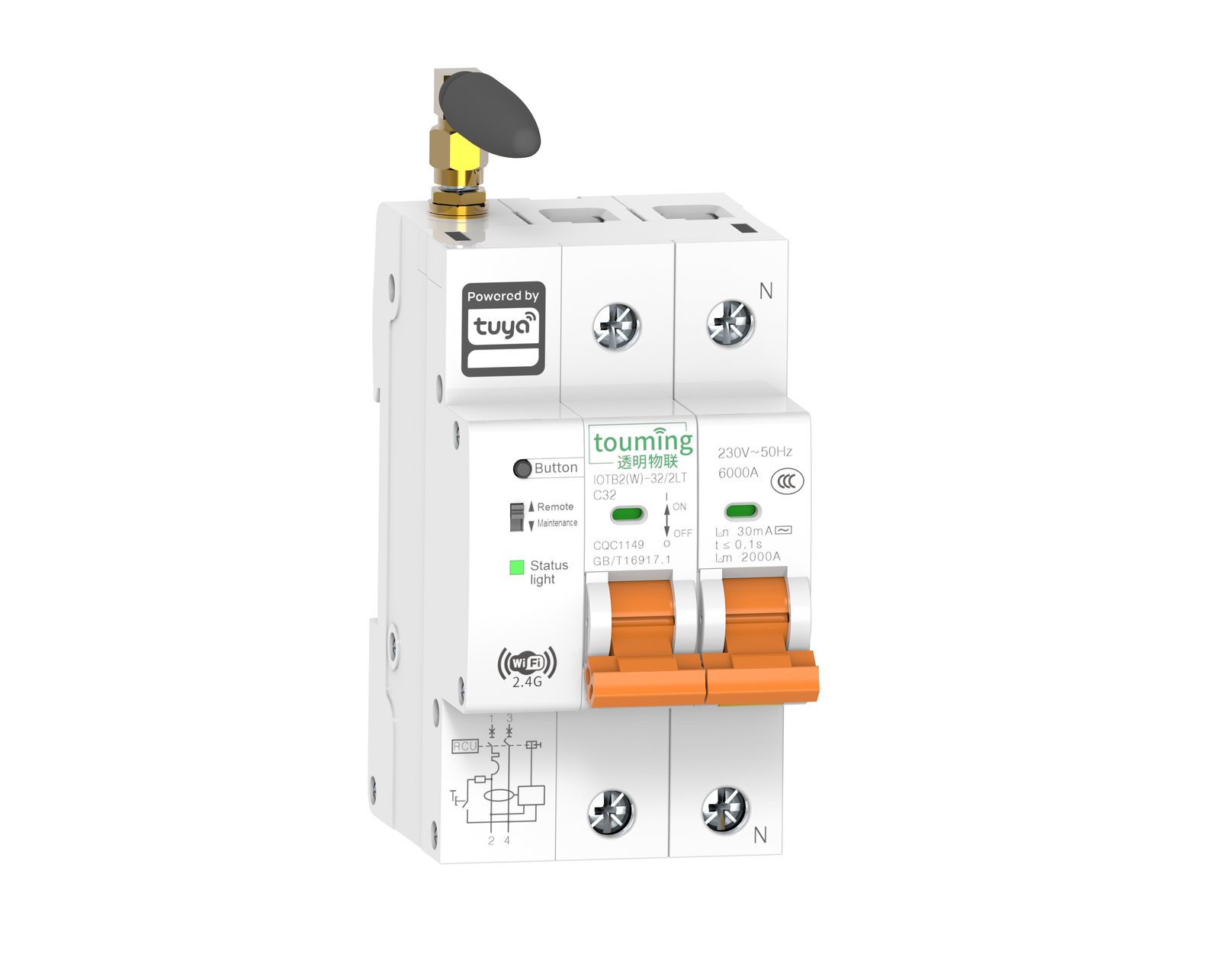

Tuya Smart RCBO
Applications
The Tuya smart RCBO is used in Tuya App ecosystem projects and suits the international app version, multilingual use, and power management for homes and small commercial premises.
-5 °C to 45 °C; altitude ≤2000m; 1-35mm² conductors; DIN rail
Certifications
CCC / CE / CQC / SRRC
Tuya App onboarding process
Item
Network provisioning method
Specification
Tuya App; WiFi 2.4GHz + Bluetooth provisioning; keeping the device 2-6m from the router is recommended
Item
Provisioning steps
Specification
Select the 2.4GHz WiFi network your phone is connected to and enter the password to complete provisioning and binding
Item
Ecosystem support
Specification
Supports the Tuya App and is compatible with Alexa, Google Assistant, Baidu Xiaodu and Xiaozhi Guanjia voice control
Item
Instructions for use
Specification
After provisioning, you can open and close the breaker, view status, track energy statistics, share the device and receive abnormality alerts.
Item
Network loss and power restoration
Specification
The previous switching state is retained after power loss; the device comes back online automatically within seconds after power is restored, with no need to repeat network provisioning.
Item
Specification
Network provisioning method
Tuya App; WiFi 2.4GHz + Bluetooth provisioning; keeping the device 2-6m from the router is recommended
Provisioning steps
Select the 2.4GHz WiFi network your phone is connected to and enter the password to complete provisioning and binding
Ecosystem support
Supports the Tuya App and is compatible with Alexa, Google Assistant, Baidu Xiaodu and Xiaozhi Guanjia voice control
Instructions for use
After provisioning, you can open and close the breaker, view status, track energy statistics, share the device and receive abnormality alerts.
Network loss and power restoration
The previous switching state is retained after power loss; the device comes back online automatically within seconds after power is restored, with no need to repeat network provisioning.
Functions
Remote control through the Tuya App, with multi-language support, sharing with multiple users and status viewing.
Supports energy-use statistics, remote open and close, and operating-status viewing.
Supports over- and under-voltage, residual-current, overtemperature, overcurrent, overload and short-circuit protection.

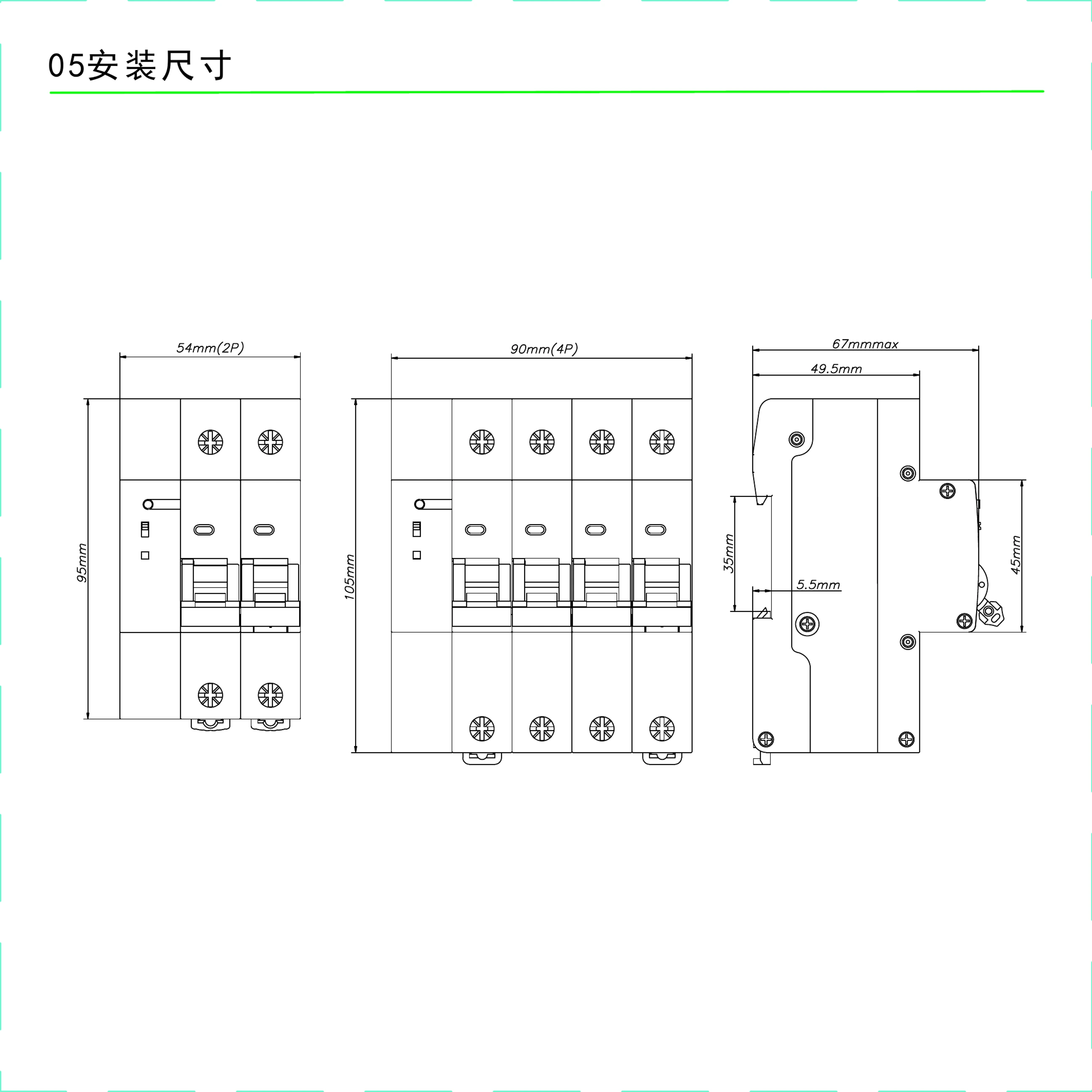

Overall and mounting dimensions

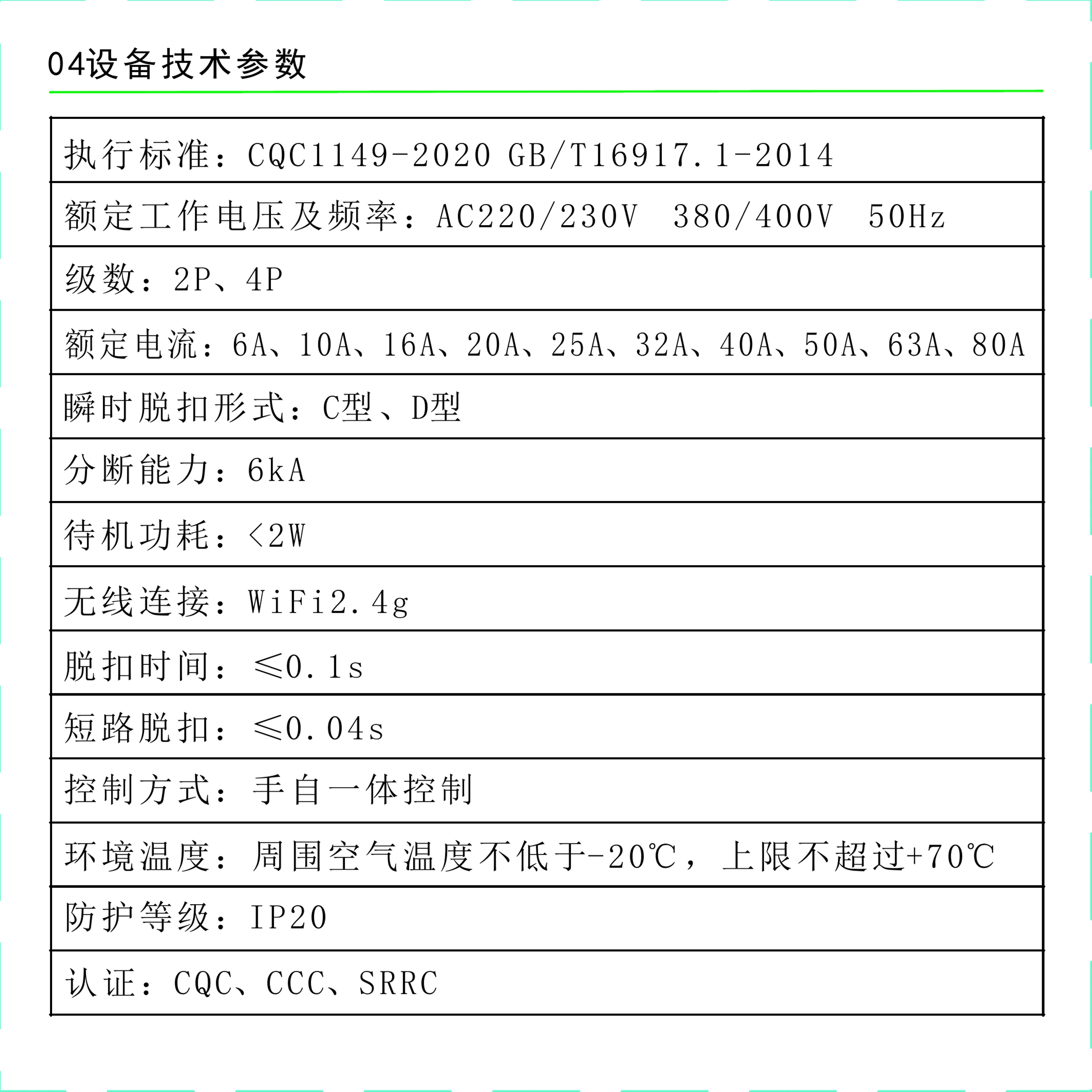

Rated voltage, current range, leakage current, communication interface and operating environment.
2P / 4P overall dimensions and antenna-side clearance.
